Let me give you a detailed introduction to what a portable boring machine is, its uses, and how to choose the right equipment.
What is a portable boring machine?

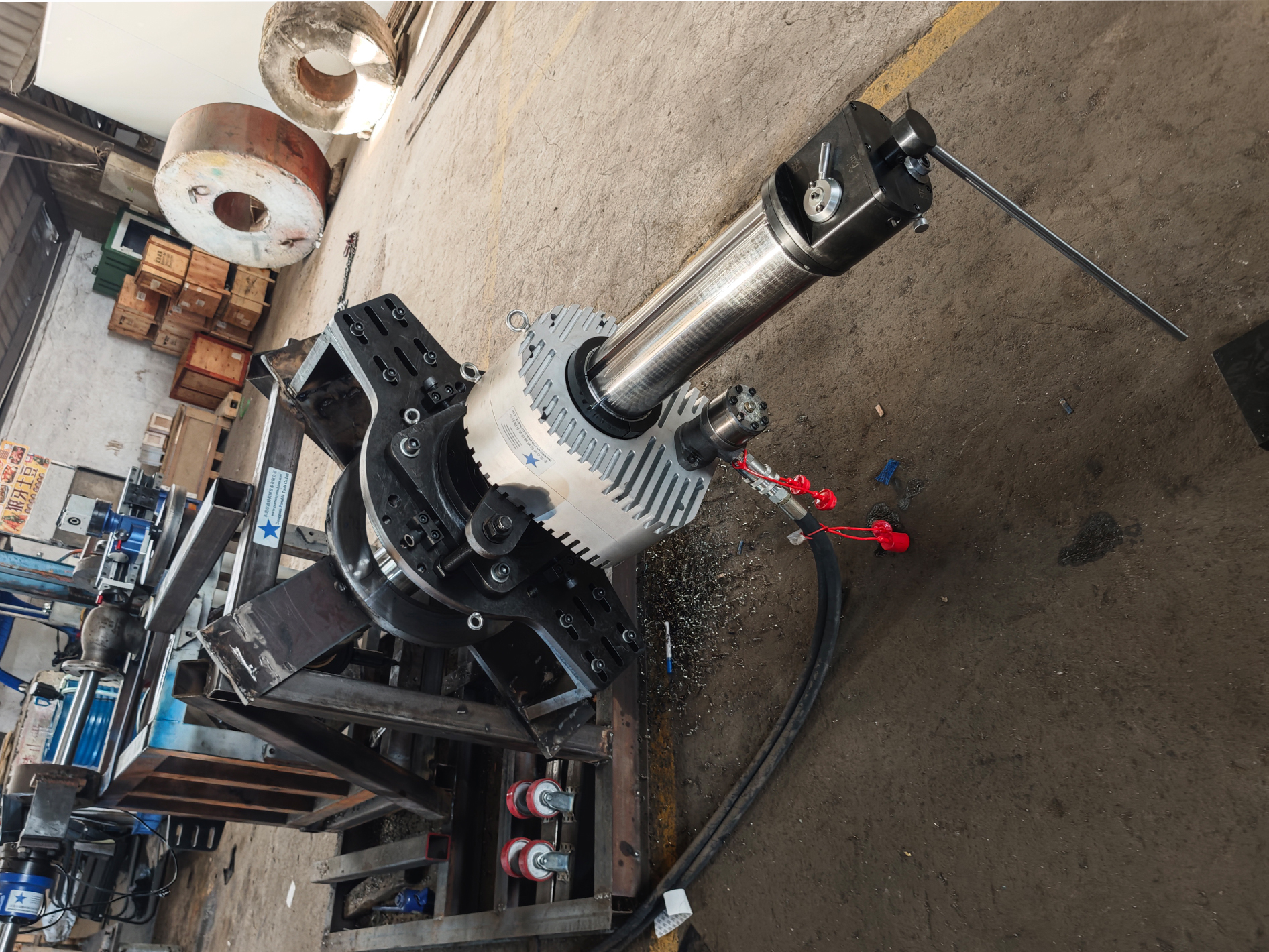

A portable boring machine is a lightweight, mobile machining equipment that is mainly used for precision machining (such as repair, enlargement, or finishing) of holes on large workpieces or fixed equipment on site. It is usually used to process parts that cannot be easily moved to traditional machine tools, such as bearing holes, shaft holes, or cylinder bores of construction machinery, ships, wind power generation equipment, excavators, etc. Compared with traditional fixed boring machines, the biggest feature of portable boring machines is portability and flexibility, and they can be brought directly to the work site for use.
Why do you need a portable boring machine?
On-site processing needs: Many large equipment or structures cannot be disassembled or transported to the processing workshop when they are damaged or need repair, such as the hinge hole of an excavator, the rudder shaft hole of a ship, etc. Portable boring machines can be operated directly on site, saving time and transportation costs.
Repair and maintenance: During the use of the equipment, the holes may lose precision due to wear, deformation or corrosion. Portable boring machines can repair these holes and restore their geometry and tolerance.
Efficiency and economy: Compared with replacing the entire component or using large machine tools, portable boring machines provide a more economical solution while reducing downtime.
Versatility: It can not only bore holes, but also cooperate with other tools for operations such as welding, milling or drilling.
Working principle of portable boring machine
Portable boring machines usually consist of the following parts:
Boring bar: used to mount the tool and cut the hole directly.
Drive system: can be electric, pneumatic or hydraulic, providing rotational power.
Support and positioning device: ensure that the boring bar remains stable and centered during the process.
Control system: adjusts the cutting depth, speed and feed rate.
The equipment uses a rotating cutting tool to gradually remove material by fixing the boring bar on the workpiece to achieve the desired hole diameter and surface finish.
How to choose a portable boring machine?
When choosing a portable boring machine, you need to consider the following factors according to your specific needs:
Processing range:
Aperture range: Confirm the aperture size that the machine can handle (e.g., 10mm to 1000mm).
Processing depth: Choose the appropriate boring bar length according to the thickness of the workpiece.
Power type:
Electric: Suitable for places with stable power supply and simple operation.
Pneumatic: Suitable for explosive risk environments (such as petrochemicals), but requires an air source.
Hydraulic: Powerful and suitable for heavy processing, but the machine is heavy.
Portability:
Equipment with small weight and size is easier to carry, especially when working in narrow or high-altitude environments.
Check whether it is easy to assemble and disassemble.
Precision requirements:
Check whether the machine’s tolerance control capability (e.g., ±0.01mm) and surface roughness meet the requirements.
Some high-end models are equipped with digital control systems to improve processing accuracy.
Working environment:
If used in a humid, dusty or extreme temperature environment, choose equipment with a protection level (such as IP54).
Consider the availability of power or air source.
Budget and brand:
Choose a cost-effective model according to your budget. Well-known brands such as Climax are usually of better quality, but the price is higher. Dongguan Portable Tools Co., Ltd’s products are relatively cost-effective and of relatively stable quality.
Of course, second-hand equipment is also an option, but check the wear and tear.
Accessories and expandability:
Whether it supports multiple tools or additional functions (such as welding repair).
Check whether there are suitable fixtures and support accessories to adapt to different workpieces.
Usage suggestions
Before purchasing, it is best to clarify the specific parameters of the processing task (such as hole diameter, material, accuracy requirements) and consult the technical support provided by the supplier.
If possible, test the equipment on site or check actual cases to ensure that it is suitable for your application scenario.
If you have specific processing needs (such as hole repair of a certain equipment), you can tell me more details and I can help you further analyze which model is more suitable!
